Concrete Floor Thickness Requirements for Car Hoist Setup

Crucial Considerations for Installing a Car Hoist in Your Garage

When contemplating the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets specific requirements. A robust and stable foundation is critical not only for the effective operation of the hoist but also for safeguarding your vehicles and the safety of anyone using the equipment. Taking the time to prepare adequately and adhere to established guidelines can greatly enhance the performance and durability of your installation.

Most car hoists necessitate a concrete slab with a minimum thickness of 100mm (4 inches). This measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist itself, thereby reducing the likelihood of cracking or sinking over time. For those considering heavy-duty hoists, opting for a thicker concrete slab, possibly up to 150mm (6 inches), can assure maximum performance and safety.

Comprehensive Steps to Determine the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a fundamental factor in the safe installation and function of a car hoist. Several variables must be examined to ascertain the appropriate depth for your slab, ensuring it can adequately support the loads it will experience during operation. Understanding these factors is essential to avoid costly errors and to enhance the safety of your garage environment.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them; therefore, it is vital to understand the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle but also the weight of the hoist itself, which can significantly increase the load on the floor.

A standard passenger vehicle typically weighs between 1,500 to 2,000 kg, while the hoist may add an additional 500 to 1,000 kg. Furthermore, it is wise to include a safety buffer in your calculations to ensure that the structure can withstand unexpected circumstances without compromising safety.

For the majority of home garages, a concrete thickness between 100 mm and 150 mm is generally sufficient. However, if you intend to lift considerably heavier vehicles, it may be prudent to opt for a thicker slab to guarantee safety and stability during operation.

Engaging with a qualified structural engineer is a prudent decision; they possess the expertise to provide personalised advice and assist you in calculating the precise thickness required based on your specific circumstances and needs.

Understanding Various Types of Car Hoists and Their Concrete Thickness Requirements

It is crucial to recognise that different types of car hoists come with unique requirements regarding concrete thickness. Two-post lifts and four-post lifts are among the most popular choices for homeowners looking to integrate a car hoist into their garage setup.

Two-post lifts typically concentrate pressure at specific points, necessitating a thicker concrete slab, often around 150 mm or more, to adequately accommodate the concentrated load.

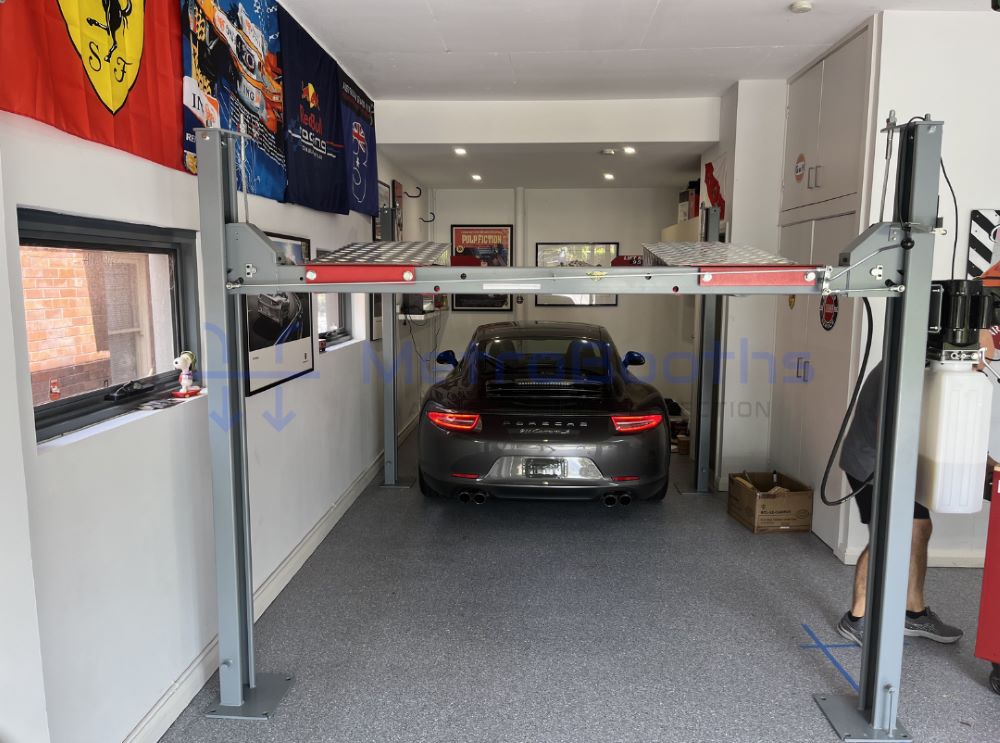

In contrast, four-post lifts generally distribute weight more evenly across a larger area, allowing them to function effectively with a slightly thinner slab, typically within the range of 100 mm to 125 mm. This understanding is vital as you plan and install your hoist.

Always refer to the manufacturer's specifications for the hoist you are considering, as they will often specify the minimum concrete thickness required for safe operation. Adhering to these guidelines is essential for optimal performance and longevity of the equipment.

Bear in mind that these recommendations serve as general guidelines; your specific requirements may differ based on your garage's configuration and the types of vehicles you intend to lift.

Recognising the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is equally as important as its thickness. Stronger concrete can often be successfully employed at a thinner depth while still providing adequate support for heavy loads, particularly in the context of car hoist installations.

It is advisable to use concrete with a compressive strength of at least 25 MPa for car hoist installations. Many industry experts suggest opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting.

Incorporating reinforcement techniques is critical for significantly enhancing the durability of your concrete. The inclusion of steel mesh or rebar can greatly improve the overall strength of your concrete floor. As a result, this could enable you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most home garages, SL82 mesh represents a reliable option, providing sufficient strength for the majority of car hoists without incurring excessive costs. This consideration is particularly important for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Essential Installation Factors for Ensuring Successful Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and consistent floor maintenance are paramount. By focusing on concrete specifications and ensuring proper floor care, you can secure the safe and prolonged operation of your hoist, ultimately protecting your investment and enhancing its functionality.

Critical Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before you install your car hoist, it is vital to confirm that your concrete floor meets all required specifications. Most hoists necessitate a slab that is a minimum of 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to use steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, consulting a professional for an accurate assessment is highly advisable.

Ongoing Maintenance Essentials Following Your Car Hoist Installation

Once your car hoist is installed, it is crucial to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address issues promptly to prevent larger complications that could impact the functionality and safety of your hoist.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan.

Regularly checking the tightness of the anchor bolts is also important, as loose bolts can damage the concrete and compromise the safety of the hoist during operational use. This simple maintenance step can prevent expensive repairs and ensure safe usage.

Consider applying a sealant to the concrete to guard against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Frequently Asked Questions About Car Hoist Installation and Concrete Requirements

Installing a car hoist requires careful consideration of the appropriate concrete thickness to ensure safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides sufficient strength to support both the weight of vehicles and the lift itself. Always refer to the manufacturer's specifications, as certain models may necessitate thicker slabs for safe operation.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is advisable to have a professional evaluate your floor to confirm that it meets the hoist's installation requirements, providing peace of mind.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under weight, posing significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness between 100mm and 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when used with an appropriate hoist. However, the specific weight limit will depend on the concrete mix and reinforcement used. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency.
