Shed Wiring Tips for Electricians in Rural Settings

If you have a shed located on acreage and find managing extension cords from your home to be a hassle, it is essential to ensure that your shed is wired correctly. Whether your needs are limited to a basic storage shed with a simple light and power point or extend to a fully equipped workshop featuring welders and compressors, adhering to the right procedures is of utmost importance. In NSW, the only legitimate means of achieving this is by engaging a licensed electrician.

This comprehensive guide outlines the crucial steps to bring electricity to your shed, detailing what your electrician will require during the installation process and providing an estimate of the costs associated with the Mid North Coast.

Maximise Your Shed's Electrical Supply: Understanding Effective Cable Runs

The foremost consideration for any shed wiring project is the efficient transmission of electrical power from your main switchboard to the shed itself. Depending on the size of your property, this distance can vary significantly, extending to 30, 50, or even more than 100 metres. The longer the distance, the thicker the diameter of the cable required to effectively manage voltage drop and maintain a consistent power supply.

When planning your cable runs, you typically have two primary options to consider:

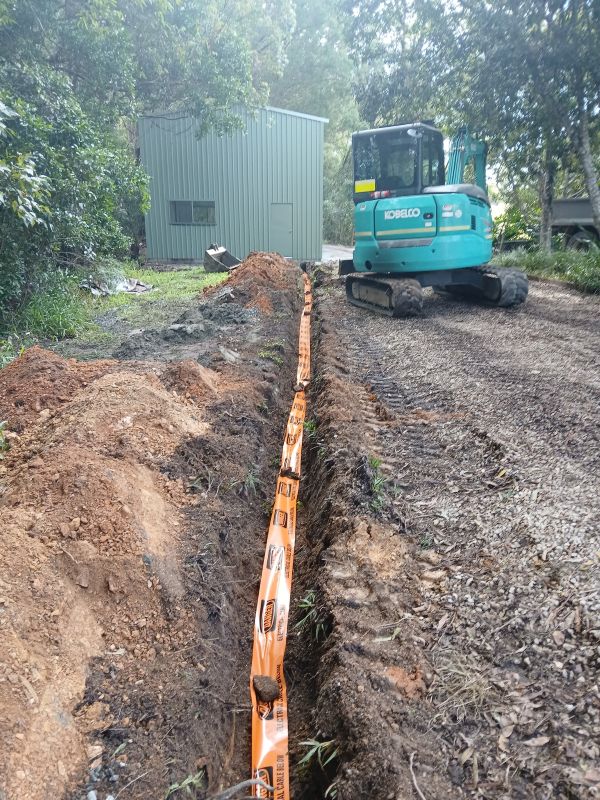

• Underground cable run — This is the most common and visually appealing choice. Your electrician will lay down durable cable through orange conduit buried at least 500mm deep, or deeper in areas subject to heavy vehicle traffic. This method protects the cable from adverse weather conditions, wildlife interference, and falling branches, making it the favoured approach for most properties with extensive acreage.
• Overhead cable run — Although less frequently utilised, this option may be necessary in circumstances where solid rock is present or when the terrain makes trenching impractical. Overhead runs must adhere to specified clearance heights and require support poles, which can considerably elevate installation costs.

For the majority of properties in or around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is the most recommended strategy. Your electrician in Bellingen can thoroughly assess your site and suggest the optimal route for the installation process.

Creating a Reliable Power Supply for Your Shed: The Importance of a Dedicated Sub-Board

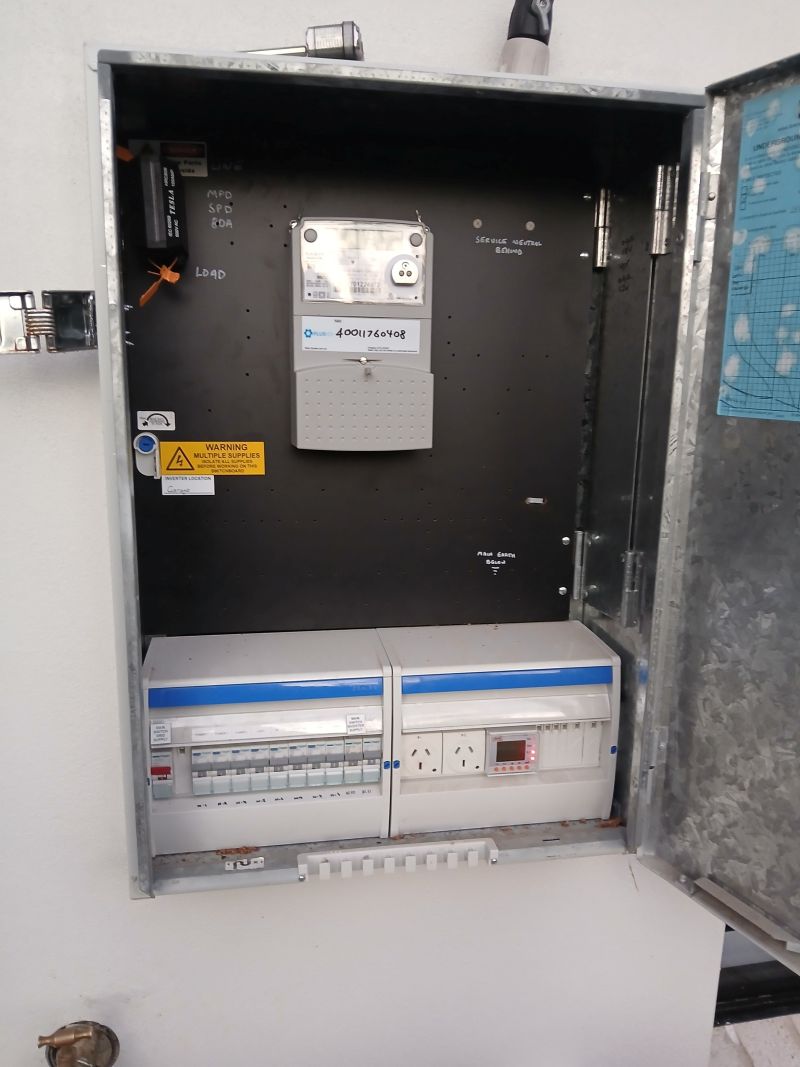

Simply running a single cable to the shed and plugging in appliances is inadequate. Any shed that is outfitted with a proper power supply must feature a dedicated sub-board, commonly known as a distribution board. This essential device functions as a mini switchboard within the shed, efficiently managing all electrical circuits.

Your sub-board typically consists of the following vital components:

• Main switch — This device allows you to isolate all power to the shed independently from the main house, significantly enhancing safety and control over your power supply.
• RCDs (Residual Current Devices) — These devices, which are mandated by NSW electrical regulations, provide rapid power cut-off in mere milliseconds in the event of a fault. This feature is crucial for safety, particularly in a shed environment where moisture, dust, and damaged leads are common hazards.
• Circuit breakers — These components offer individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits.

If your home’s switchboard is outdated, your electrician may also recommend upgrading it to effectively accommodate the additional electrical load directed to the shed.

What Key Features Should Be Installed Inside Your Shed for Maximum Utility?

The specific installations that your electrician performs inside the shed will depend entirely on its intended function. Here’s a detailed overview of typical setups for various applications.

Designing an Efficient Basic Storage Shed

If your shed is primarily a storage space for tools, a ride-on mower, or other equipment, consider implementing the following setup to maximise efficiency:

• LED batten lights — One or two ceiling-mounted LED batten lights will provide sufficient illumination for the entire area. Your electrician can offer expert recommendations on the best lighting layout based on the shed's size and configuration.
• Two to four general power points — This number will be adequate for plugging in a charger, a radio, or a drop saw as needed. Expect standard power points and switches to operate on a single circuit for simplicity.
• External light — A weatherproof LED light positioned above the entrance will ensure visibility, helping you avoid fumbling around in the dark when entering or exiting the shed.

Configuring a Fully Equipped Powered Workshop Shed

If you frequently utilise power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration is essential to facilitate your work:

• Multiple circuits — Establishing separate circuits for lighting, general power, and dedicated tool outlets will prevent flickering lights when tools are activated, thus ensuring a smoother workflow.
• Higher-rated power points — Providing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require additional power for effective operation.

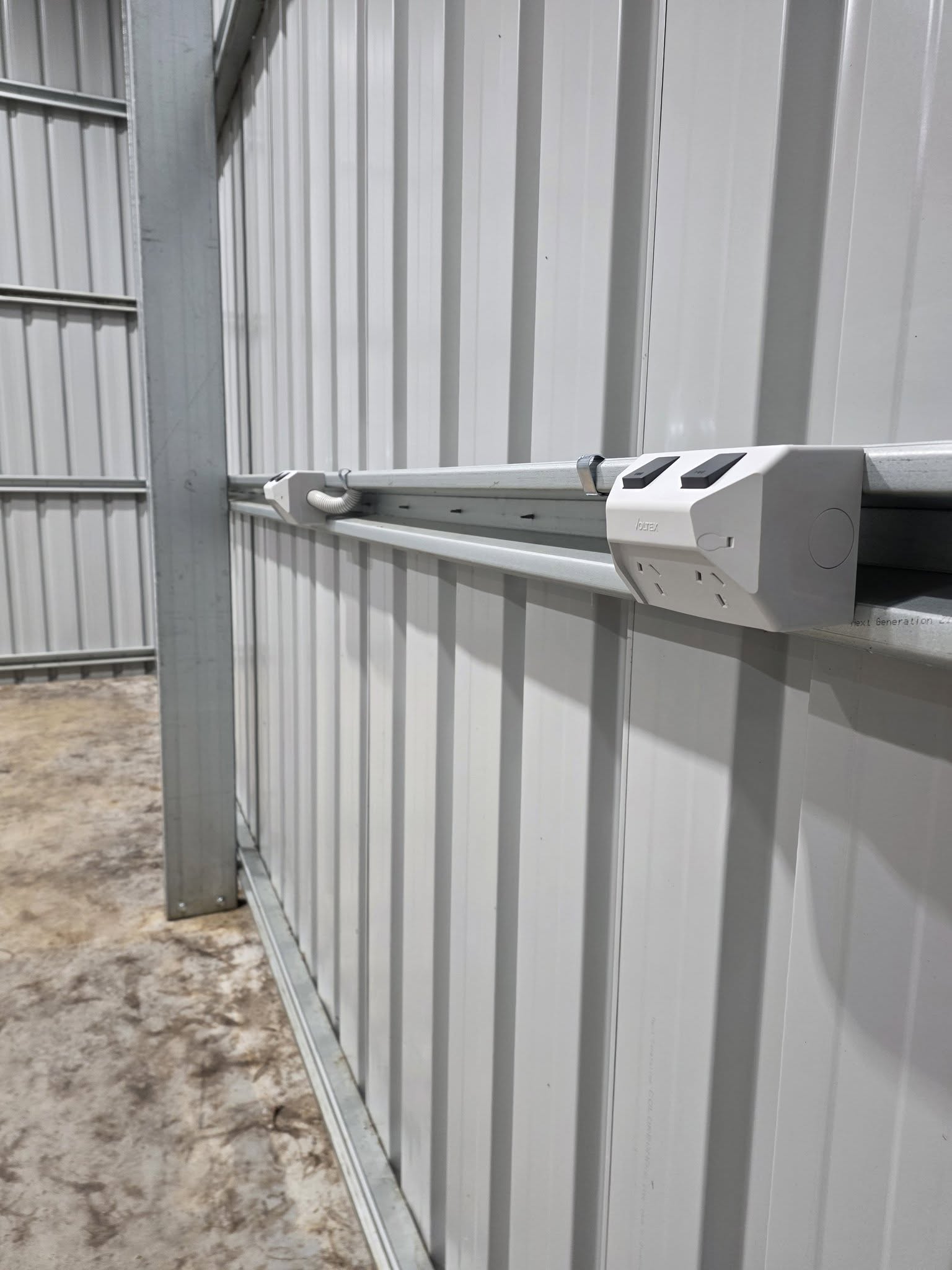

• Strategically positioned additional power points — Install outlets at bench height rather than merely at skirting level, taking into account the actual locations of your workbenches to enhance efficiency.

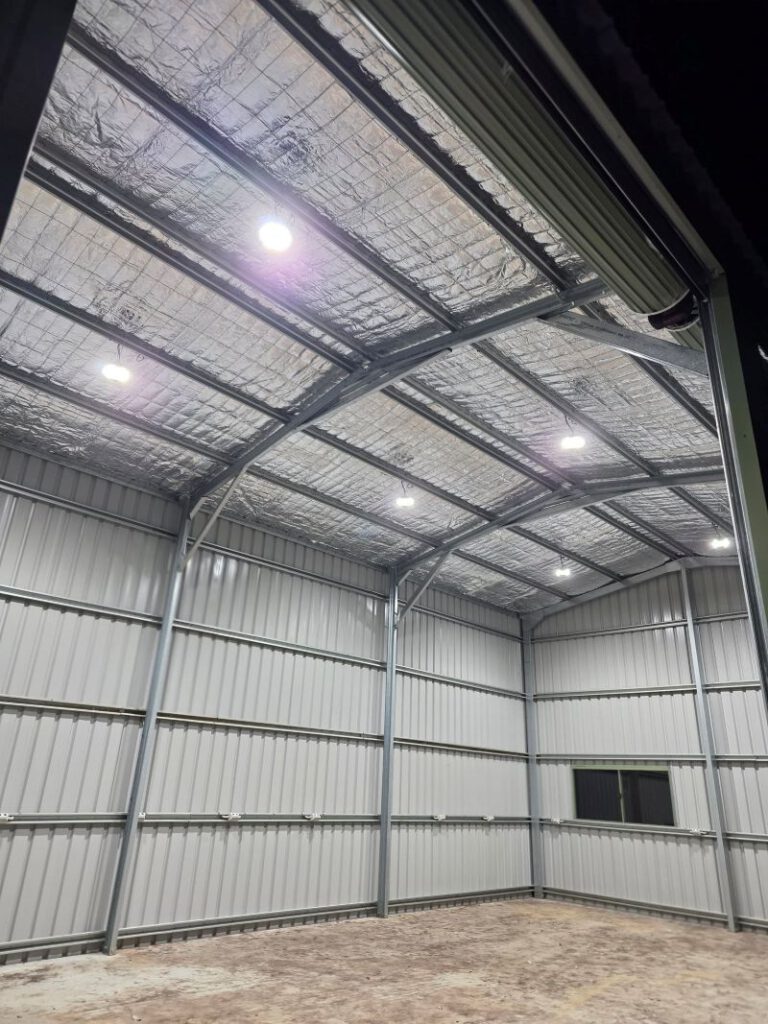

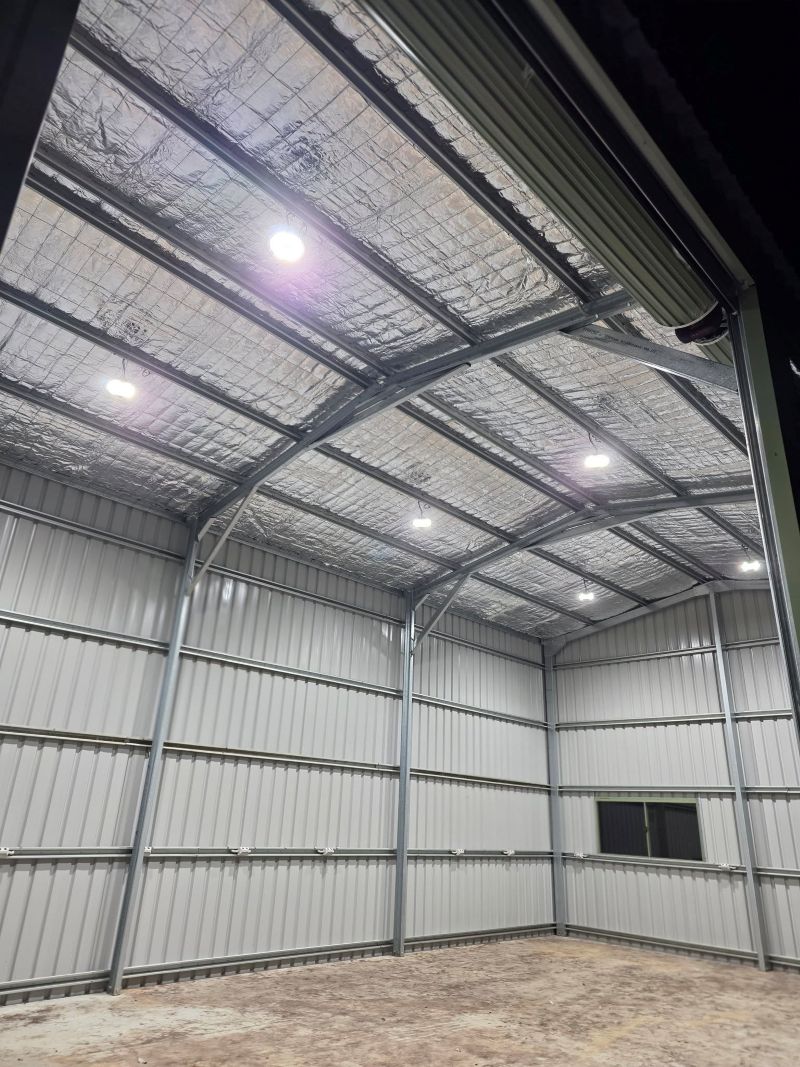

• Dedicated lighting — Ensure that brighter, more focused lighting is installed over work areas. Consider using LED high-bays for larger sheds to significantly improve visibility during intricate tasks.

For comprehensive guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment.

Establishing a Comprehensive Workshop With Three-Phase Power Supply

If you intend to operate heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying on single-phase power may not suffice. In such cases, considering a three-phase power supply is advisable.

Three-phase power offers more consistent and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast.
• Install a three-phase sub-board in the shed, complete with appropriate breakers and RCDs to ensure safety and compliance with regulations.
• Run heavier cabling — It is crucial to note that three-phase cable runs typically incur higher costs, especially over long distances.
• Install three-phase outlets — These industrial-grade sockets must be rated for the machinery being utilised to ensure both safety and efficiency.

If you are uncertain whether three-phase power is necessary for your requirements, consult our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when three-phase power is beneficial and when a well-designed single-phase setup will suffice. We also offer comprehensive installations for three-phase switchboards should you opt for that route.

Why Is Surge Protection Essential for Your Shed's Safety?

Properties located on acreage in the Mid North Coast often experience severe lightning storms. A direct or nearby strike can cause extensive damage to everything housed within your shed, jeopardising tools, chargers, refrigerators, and all equipment that is connected to the power supply.

Installing a high-quality surge protection device within the sub-board serves as an affordable form of insurance. This device absorbs voltage spikes before they reach your valuable equipment. For sheds housing expensive tools or workshops, surge protection is an absolute necessity to safeguard your investments effectively.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch, allowing the shed (and the house) to seamlessly transition to generator power safely during outages.

What Are the Regulations Regarding Council Approval and Compliance in NSW?

There are several critical regulations that you must be aware of:

• All electrical work in NSW must be conducted by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical activities—including cabling, connections, sub-board installation, and more—must be performed by a licensed contractor who will issue a Certificate of Compliance (CCEW).
• Depth requirements for underground cables must adhere to AS/NZS 3000 (the Wiring Rules). Your electrician will manage this aspect of the installation efficiently to ensure compliance and safety.
• If the shed is newly constructed, development approval may be necessary depending on your local council and the dimensions of the shed. While the electrical work itself does not require a separate permit, the overall building project may.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to guarantee safety and legality.

Estimating Costs for Shed Wiring on Acreage: What to Expect

Each shed presents unique challenges—distance from the house, whether single-phase or three-phase power is required, the number of circuits needed, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast region:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+

Longer cable runs (50m+), rocky terrain necessitating a rock saw, or upgrades for three-phase supply will all increase the overall cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here.

Answering Your Most Frequently Asked Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

No, all electrical work in NSW must be executed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant dangers. Your electrician will provide a Certificate of Compliance upon completion of the work, ensuring it meets legal standards and safety requirements.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to traverse over the cable run, the depth typically needs to be increased to 600mm or more. Your electrician will ascertain the appropriate depth for your specific property, ensuring full compliance with safety regulations.

Do I Need a Separate Meter for My Shed?

In most situations, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed is utilised as a distinct dwelling or commercial premises, which will necessitate further discussions with your council and your energy distributor.

How Long Does It Take to Wire a Shed on Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—generally takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth before commencing work. Three-phase installations often require more time, as the supply connection must first be arranged with the distributor before installation can begin.

Can I Run Power From the Shed to Other Buildings?

Yes, it is feasible; however, each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load requirements. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than implementing subsequent additions that could lead to complications.

Ensure Safe and Effective Wiring for Your Shed

If you are located on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is dedicated to ensuring your shed is wired correctly—whether it features a straightforward light-and-power setup or an extensive three-phase workshop.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your individual needs.
